DESCRIPTION

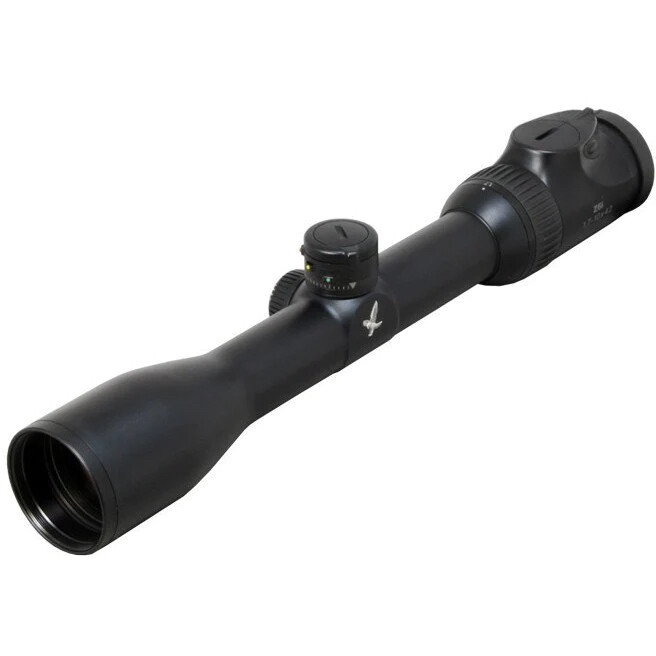

The Swarovski Z6i 1.7-10×42 Ballistic Turret L Riflescope 4A-I Reticle offers the shooter an outstanding field of view and helps give you that extra edge, especially in target acquisition. In narrow bushveld pathways, you can identify your target quickly and accurately and the 6x magnification means that you are also perfectly equipped for medium distance shots.
The illuminated Swarovski Z6i 1.7-10×42 BT L Riflescope really stands out with the 6x zoom, which provides the finest detail, and its 127.5 ft / 42.5 m field of view with a 1x magnification, which provides a larger overview when hunting. The slim and lower design of the illumination unit is better suited to a wide selection of hunting rifles and the new features support the hunter, allowing for an easier and more convenient operation of the Z6i riflescope.
BALLISTIC TURRET OVERVIEW
You can assemble the Swarovski Ballistic Turret in a few simple steps to accurately adjust it to your weapon, and change the distances that have been selected at any time. In addition to the four marked distances, there are other distance settings available to you. A specifically developed ballistic program calculates the values that you require in number of clicks for the desired distances. The alignment nose on the ballistic turret indicates whether or not you are using the basic setting.
FEATURES
SPECIFICATIONS
Mount-Type: | Ring-mount |
Reticle: | BT 4A-I |
Magnification: | 1.7-10x |
Exit pupil diameter: | 9.6-4.2 mm |
Field of view: | 25.5-4.2 m/100m |
Field of view apparent: | 23.7 ° |
Light transmission: | 90 % |
Effective objective lens diameter: | 16.0-42 mm |
Exit pupil distance: | 95 mm |
Field of view degrees: | 14.3-2.4 ° |
Diopter adjustment: | -3 to +2 dpt |
Twilight factor acc. to ISO 14132-1: | 4.7-20.5 |
Impact point correction per click (in / mm): | 0.36 / 10 |
Max. elevation / windage adjustment range (m/100m / in/100yds): | 1.5/54 |
Objective filter thread: | M 44×0.75 |
Length in mm: | 324 mm |
Central tube diameter: | 30 mm |
Weight: | 490 g |
Functional temperature: | -20 to +55 °C |
Submersion tightness | 13 ft / 4 m water depth (inert gas filling) |
Storage temperature: | -30 to +70 °C |
Illumination Twilight: | 0 – 32 / Day: 33 – 64 Brightness levels |
