DESCRIPTION

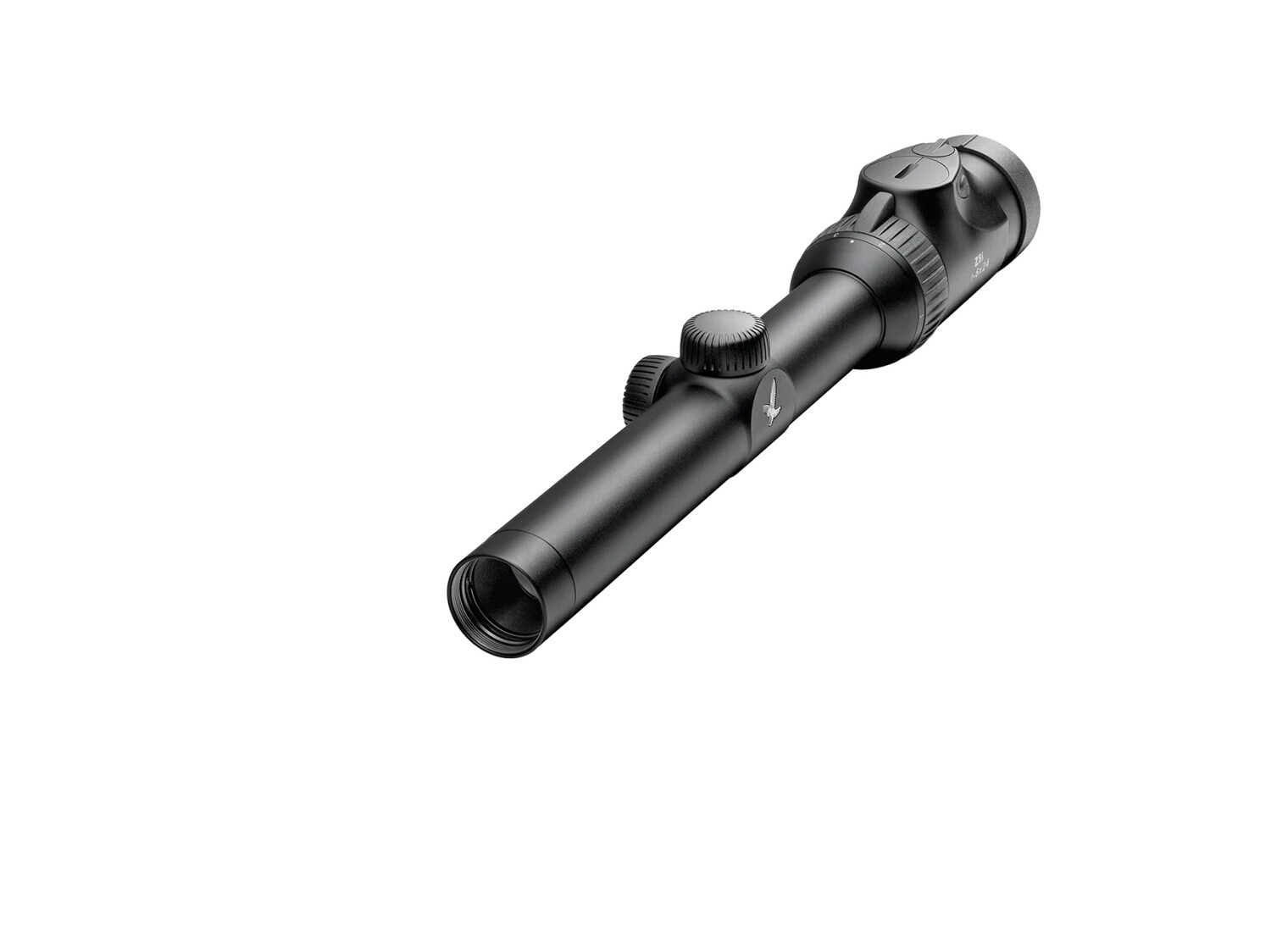

The Swarovski Z6i 1-6×24 L Riflescope BRT-I Reticle offers the shooter an outstanding field of view and helps give you the edge in quick target acquisition. In narrow bush or forest pathways, you can identify your target accurately and the 6x magnification means that you are also perfectly equipped for medium distance shots.
The illuminated Swarovski Z6i 1-6×24 L really stands out with the 6x zoom, which provides the finest detail, and its 127.5 ft / 42.5 m field of view with a 1x magnification, which provides a larger overview when hunting. The slim and lower design of the illumination unit is better suited to a wide selection of hunting rifles and the new features support the hunter, allowing for an easier and more convenient operation of the Swarovski Z6i rifle scope.
FEATURES
SPECIFICATIONS
Mount-Type: | Ring-mount |
Reticle: | BRT-I |
Magnification: | 1-6x |
Exit pupil diameter: | 9.6-4.0 mm |
Field of view: | 42.5-6.8 m/100m |
Field of view apparent: | 23.4 ° |
Light transmission: | 90 % |
Effective objective lens diameter: | 9.6-24 mm |
Exit pupil distance: | 95 mm |
Field of view degrees: | 23.8-3.9 ° |
Diopter adjustment: | -3 to +2 dpt |
Twilight factor acc. to ISO 14132-1: | 2.8-12 |
Impact point correction per click (in / mm): | 0.54 / 15 |
Max. elevation / windage adjustment range (m/100m / in/100yds): | 2/72 / 2/72 |
Objective filter thread: | M 27×0.75 |
Length in mm: | 296 mm |
Central tube diameter: | 30 mm |
Weight: | 440 g |
Functional temperature: | -20 to +55 °C |
Submersion tightness | 13 ft / 4 m water depth (inert gas filling) |
Storage temperature: | -30 to +70 °C |
Illumination Twilight: | 0 – 32 / Day: 33 – 64 Brightness levels |
