DESCRIPTION

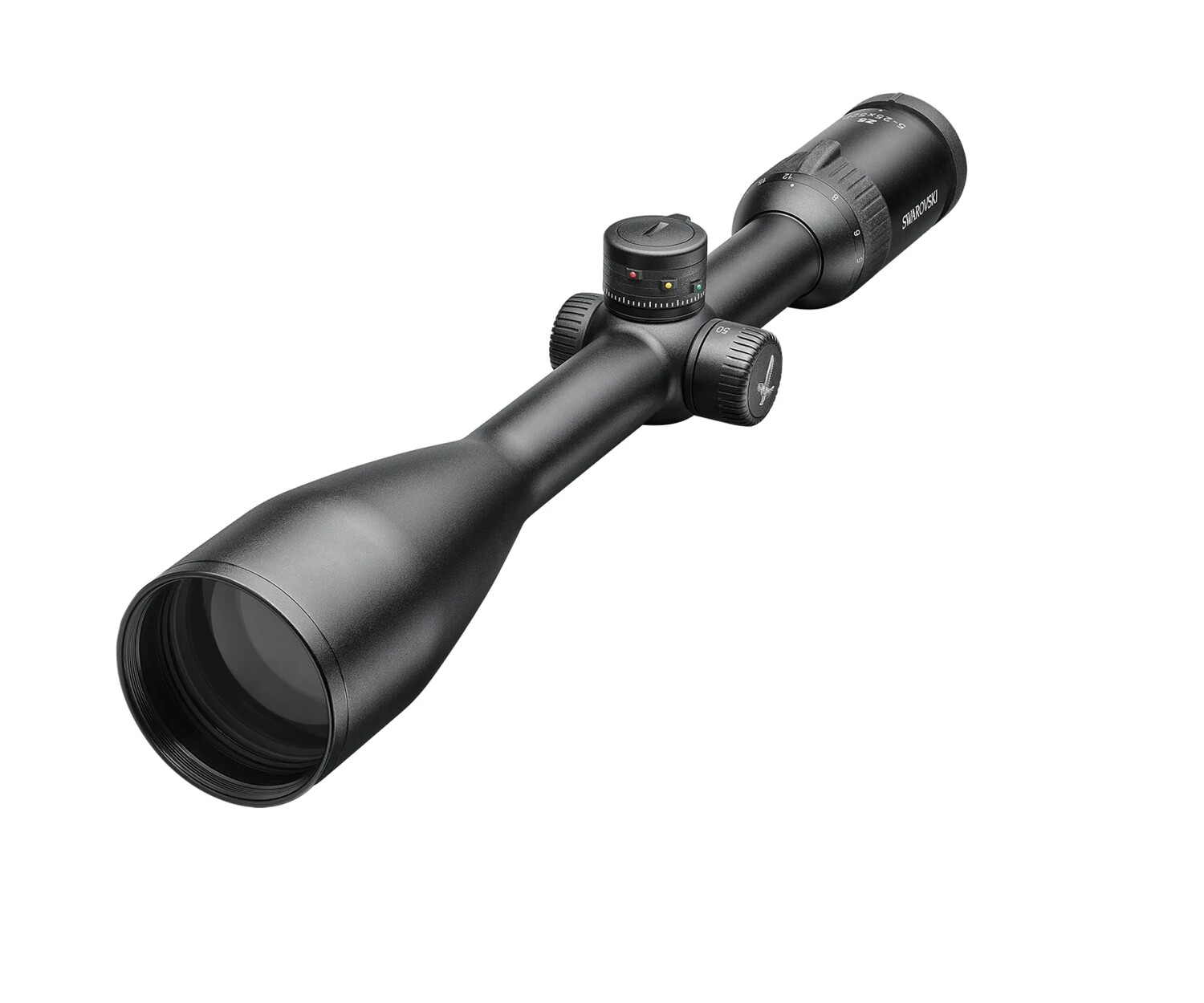

The Swarovski Z5 5-25×52 P Ballistic Turret L Riflescope BRH Retrofit Reticle better know as the Long-Range Hunter Riflescope, is intended and built for optimum long-range shooting precision. This 1-inch rifle scope leads the way in its class thanks to its lateral parallax correction and optical performance. Taking aim involves concentrating on the game, the moment and the decision, this is when the precision of the Swarovski Z5 truly shines.
Light weight and perfect for walk and stalk hunters, Swarovski Z5 combines a lighter weight and higher magnification, all without sacrificing accuracy or optical clarity. Its 25x magnification and 5x zoom rightly make this riflescope, an expert in long range shooting and hunting. The Swarovski Z5 delivers optical performance rarely achieved by other 25mm riflescopes and offers the weight conscious hunter an extremely high quality optical sight with a broad zoom range.
BALLISTIC TURRET OVERVIEW
You can assemble the Swarovski Ballistic Turret in a few simple steps to accurately adjust it to your weapon, and change the distances that have been selected at any time. In addition to the four marked distances, there are other distance settings available to you. A specifically developed ballistic program calculates the values that you require in number of clicks for the desired distances. The alignment nose on the ballistic turret indicates whether or not you are using the basic setting.
FEATURES
SPECIFICATIONS
Mount-Type: | Ring-Mount |
Reticle: | BT BRH |
Magnification: | 5-25x |
Exit pupil diameter: | 9.6-2.1 mm |
Field of view: | 7.3-1.5 m/100m |
Field of view apparent: | 21.5 ° |
Light transmission: | 90 % |
Parallax correction: | 50-∞ m |
Effective objective lens diameter: | 48-52 mm |
Exit pupil distance: | 95 mm |
Field of view degrees: | 4.2-0.84 ° |
Diopter adjustment: | -3 to +2 dpt |
Twilight factor acc. to ISO 14132-1: | 13.2-36 |
Impact point correction per click (in / mm): | 0.25 / 7 |
Max. elevation / windage adjustment range (m/100m / in/100yds): | 43/25 / 1.2/0.7 |
Objective filter thread: | M 54×0.75 |
Length in mm: | 371 mm |
Central tube diameter: | 25.4 mm |
Weight: | 495 g |
Functional temperature: | -20 to +55 °C |
Submersion tightness | 13 ft / 4 m water depth (inert gas filling) |
Storage temperature: | -30 to +70 °C |
