DESCRIPTION

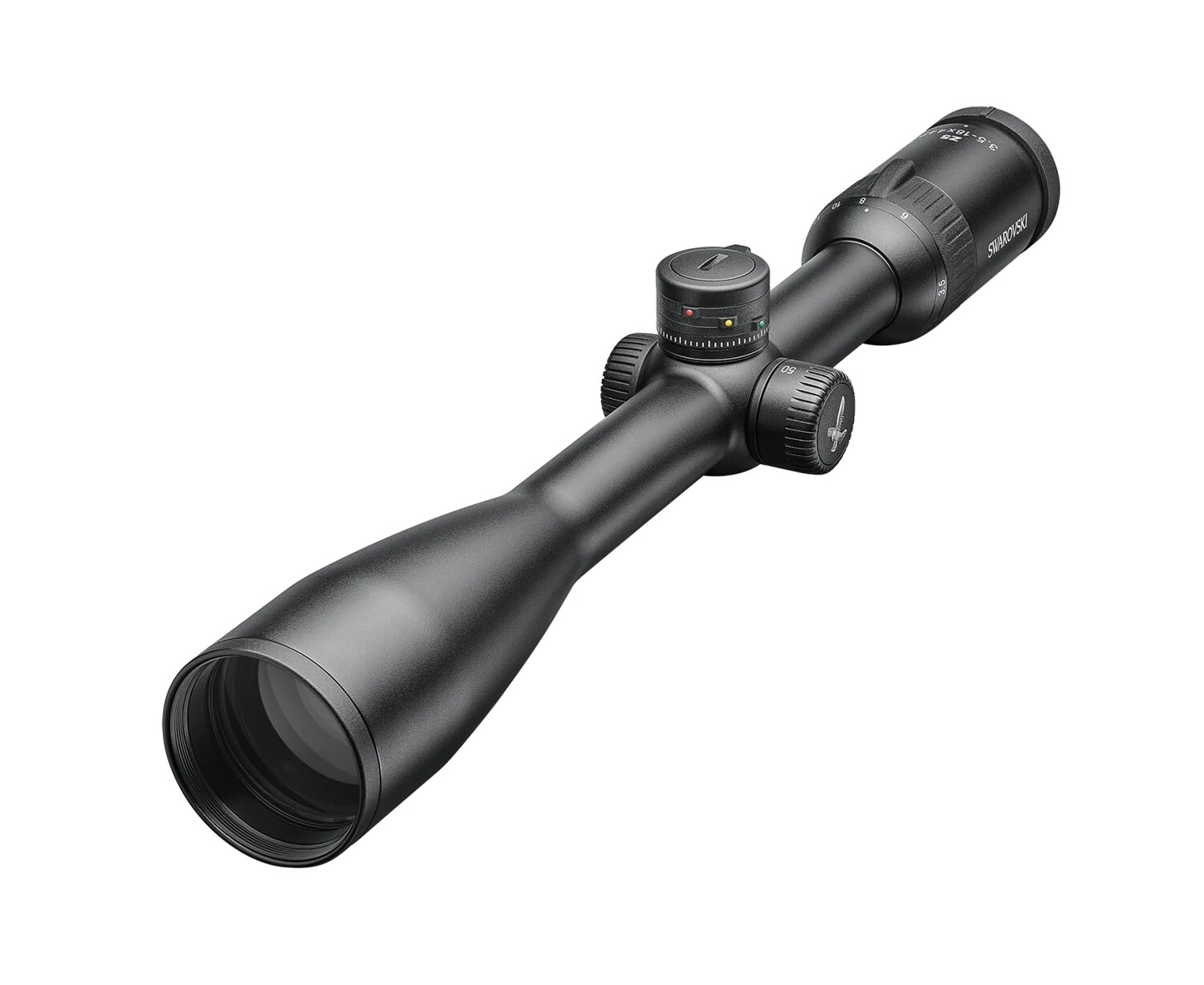

The Swarovski Z5 3.5-18×44 P Ballistic Turret L Riflescope Plex Reticle delivers optical performance rarely achieved by 25mm scopes and offers the weight conscious hunter an extremely high quality optical sight with a broad 5x magnification range. Taking aim involves concentrating on the game, the moment, and the decision, this is when the precision of the Swarovski Z5 matters.
Light weight and perfect for walk and stalk hunters, Swarovski Z5 Riflescopes combine lighter weight and higher magnification without sacrificing accuracy or optical clarity.
The Swarovski Z5 3.5-18×44 P BT L Riflescope offers the same high-precision optics that Swarovski Riflescopes are known for, with a slim and rugged body. As a result, this rifle scope is perfectly suited for many hunting situations. The lightweight 25mm scope demonstrates its strengths in particular with accurate long-range shots in the mountains or on rough terrain. Lateral parallel correction guarantees a faultless image, no matter how far away you are.
BALLISTIC TURRET OVERVIEW
You can assemble the Swarovski Ballistic Turret in a few simple steps to accurately adjust it to your weapon, and change the distances that have been selected at any time. In addition to the four marked distances, there are other distance settings available to you. A specifically developed ballistic program calculates the values that you require in number of clicks for the desired distances. The alignment nose on the ballistic turret indicates whether or not you are using the basic setting.
FEATURES
SPECIFICATIONS
Mount-Type: | Ring-Mount |
Reticle: | BT Plex |
Magnification: |
3.5-18x
|
Exit pupil diameter:
|
10-2.4 mm
|
Field of view:
|
10-2 m/100m
|
Field of view apparent:
|
21.5 °
|
Light transmission:
|
90 %
|
Parallax correction:
|
50-∞ m
|
Effective objective lens diameter: |
35-44 mm
|
Exit pupil distance: |
95 mm
|
Field of view degrees: |
5.8-1.17 °
|
Diopter adjustment: |
-3 to +2 dpt
|
Twilight factor acc. to ISO 14132-1:
|
9.3-28
|
Impact point correction per click (in / mm):
|
0.25 / 7
|
Max. elevation / windage adjustment range (m/100m / in/100yds):
|
58/36 / 1.6/1
|
Objective filter thread: |
M 46×0.75
|
Length in mm: |
363 mm
|
Central tube diameter: |
25.4 mm
|
Weight: |
450 g
|
Functional temperature: |
-20 to +55 °C
|
Submersion tightness:
|
13 ft / 4 m water depth (inert gas filling)
|
Storage temperature: |
-30 to +70 °C
|
