DESCRIPTION

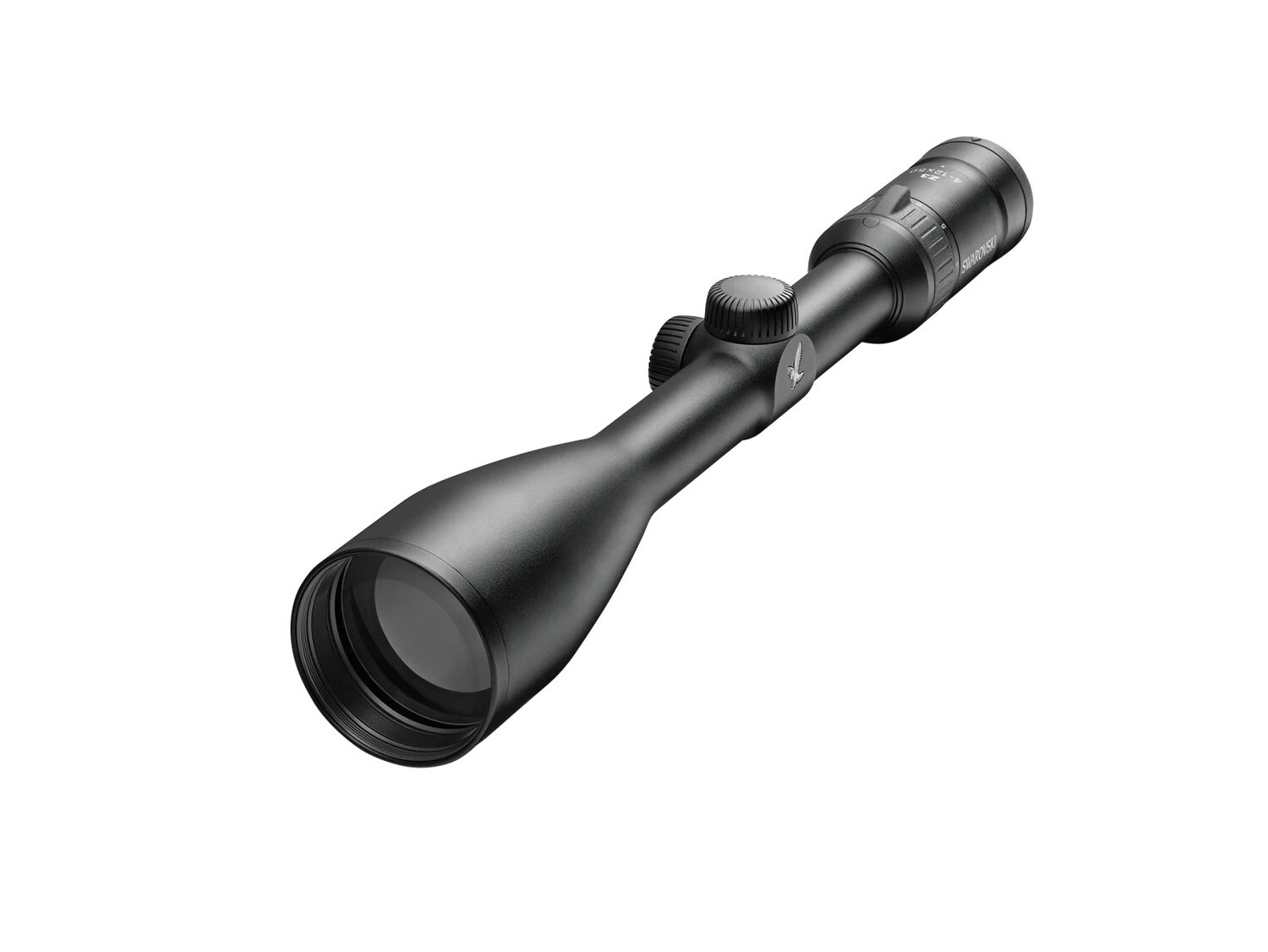

The Swarovski Z3 4-12×50 L Riflescope BRX Reticle offers the same high-precision optics that Swarovski Riflescopes are known worldwide for. With a slim and rugged body, the Z3 rifle scope is perfectly suited for many hunting applications. Taking aim involves concentrating on the game, the moment, and the decision, easily done with Swarovski Optik.
The Swarovski Z3 Riflescope is the successor to the successful AV riflescope range. The elegant appearance conceals the state-of-the-art technology that gives you maximum performance at the crucial moment. The BRX Reticle has fine dimensions and was primarily designed for Target and Varmint shooting at lower light conditions.
Its slim design makes it the perfect fit for traditional firearms and work particularly well in poor light conditions and over longer distances. Thanks to its 50 mm objective lens diameter and 12x magnifications, even though the reticle has fine dimensions. The Z3’s trim profile offers a clean unobtrusive look. The field of view is crisp, wide, and rich with fine detail.
FEATURES
SPECIFICATIONS
Mount-Type: | Ring-Mount |
Reticle: | BRX |
Magnification: |
4-12x
|
Exit pupil diameter:
|
12.5-4.2 mm
|
Field of view:
|
9.7-3.3 m/100m
|
Field of view apparent:
|
22.7 °
|
Light transmission:
|
90 %
|
Effective objective lens diameter: |
50 mm
|
Exit pupil distance: |
90 mm
|
Field of view degrees: |
5.5-1.9 °
|
Diopter adjustment: | -2.5 to +2.5 dpt |
Twilight factor acc. to ISO 14132-1:
|
10.6-24.5
|
Impact point correction per click (in / mm):
|
0.25 / 7
|
Max. elevation / windage adjustment range (m/100m / in/100yds):
|
43 / 1.2
|
Objective filter thread: |
M 52×0.75
|
Length in mm: |
350 mm
|
Central tube diameter: |
25.4 mm
|
Weight: |
410 g
|
Functional temperature: |
-20 to +55 °C
|
Submersion tightness:
|
13 ft / 4 m water depth (inert gas filling)
|
Storage temperature: |
-30 to +70 °C
|
