The Lynx LX3 2.5-15x50 Tactical Riflescope has extra low dispersion glass and the latest anti-reflective lens coating technology gives brilliant image clarity and brightness. The scope is easy on the eye during prolonged periods of use due to its generous and forgiving eye relief and the long 155 mm main tube makes for easy mounting onto long-action rifles.
Low-profile tactical controls elevation control is fitted with an easy to engage zero stop function which permits full upward adjustment of the point of aim and returns precisely to your pre-determined zero position.
The scope adjustment controls are engraved with large, highly-visible numbers which make them easy to read in poor light. Each click moves the point of aim 0.1 mil and one full revolution of the control moves the point of aim 5 mils, which matches the length of the measured centre portion of the reticle.
The Lynx RF-Tactical reticle is newly designed for tactical sport shooters. It is graduated in mils in 1 mil and 1/2 mil increments. The centre circle and dot illuminate green to provide for both quick and accurate aiming, depending on your situational requirement.
The ranging scale, calibrated to range 50cm high target from 200 metres to 1 200 metres in 100 metre increments and 33cm & 25cm high targets from 200 metres to 600 metres, is inset at the bottom of the sight picture.
Magnification | 2.58x |
Exit Pupil Diameter | 11.6 |
Eye Relief | 99 |
Actual FOV | 8.22 |
Resolving Power (seconds) | 9.1 |
Objective Diameter | 50mm |
Dioptre Adjustment | -2.5D to +2.5D dioptre |
Total windage adjustment range | 70 MOA |
Total elevation adjustment range | 70 MOA |
Tube Diameter | 30mm |
Waterproof | Positive internal pressure 300kPa. Submersible 1m for 60 minutes. |
Fogproof | Dry nitrogen purged |
Temperature operating range | -20 to +71 |
Parallax | side focus |
Eyepiece | Fast focus |
Anti-reflective lens coating | Fully multi coated |
Lens elements | 6 |
Total light transmission | 87% (day) / 86.40% (night) |
Windage / Elevation control | Target/Tactical with zero stop on elevation |
Windage click value | 0.1 mil |
Elevation click value | 0.1 mil |
Length | 381mm |
Weight | 780g |
LOW POWER | HIGH POWER | |
Magnification | 2.58x | 14.91x |
Exit pupil diameter (mm) | 11.6 | 3.4 |
Eye-relief (mm) | 99 | 98 |
Actual FOV | 8.22° | 1.42° |
Dioptre adjustment | -2.5D to +2.5D | |
Objective diameter | 50mm | |
Total Windage adjustment range | 35 MOA | |
Total Elevation adjustment range | 35 MOA | |
Tube diameter | 30mm | |
Tube material | Black hard anodized aluminium (HV300) | |
Water proof | Positive internal pressure 300kPa. Submersible 1m for 60 minutes. | |
Recoil proof | 1000G 1ms x 1000 | |
Fog proof | Dry nitrogen purged | |
Temperature operating range | -20 to +71°C | |

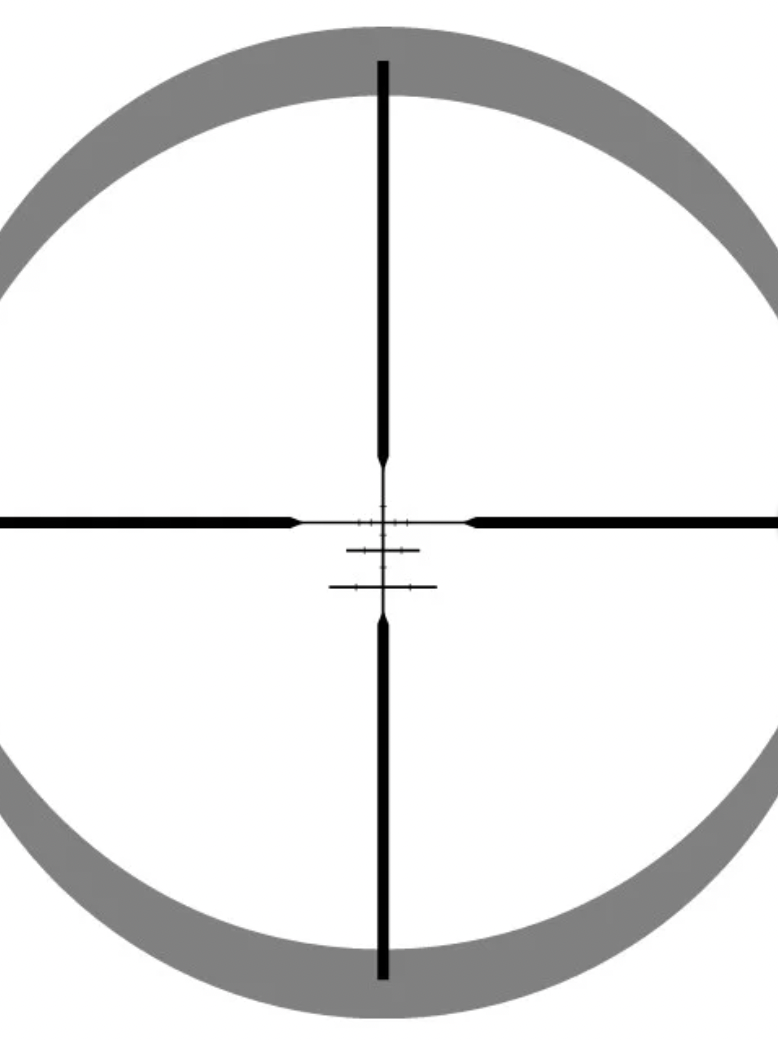

Reticle | Illuminated SA Hunter | |
Battery type | CR2032 | |
Switch type | Mechanical saddle mounted. 10 brightness settings. Instant off/on. | |
Parallax | Side focus | |
Eyepiece | European-style fast focus | |
Antireflective lens coating | Fully multi coated | |
Windage / Elevation control | Target/Tactical with zero stop on elevation | |
Windage click value | 1/4 MOA | |
Elevation click value | 1/4 MOA | |
Length | 381mm | |
Weight | 780g |
