DESCRIPTION

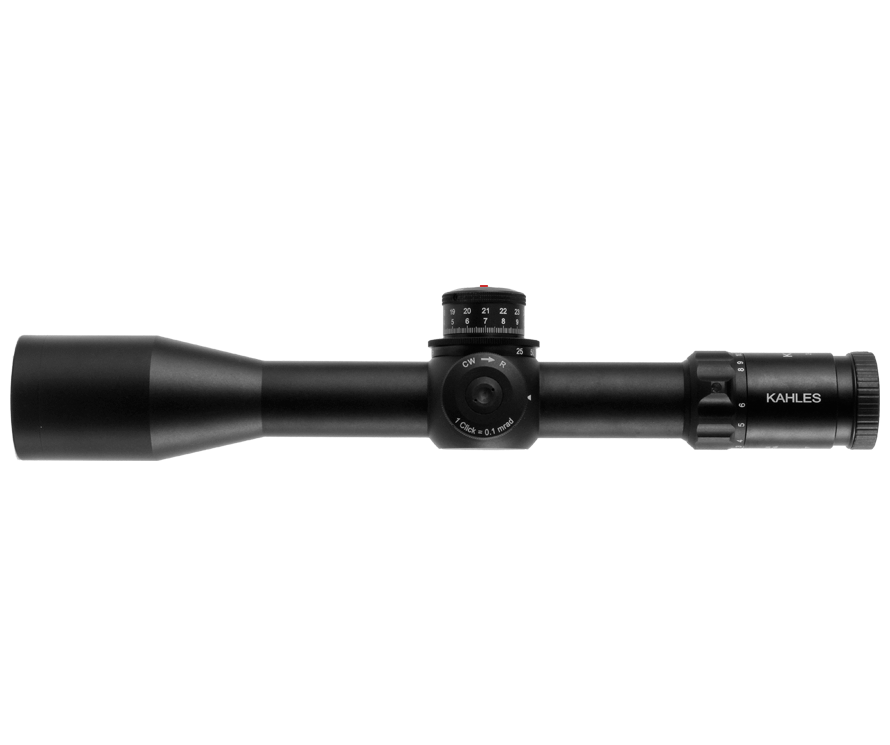

The K312i sets standards in handling and ergonomics thanks to the KAHLES exclusive arrangement of its operating elements. It provides outstanding optical performance, a well proven magnification range and practical reticles.
FEATURES
SPECIFICATIONS
Magnification: | 3 - 12x |
Objective lens diameter: | 50 mm |
Exit pupil: | 9.7 - 4.2 mm |
Eye relief: | 90 mm |
Field of view: | 11.1 - 3.3 m/100 m |
Diopter compensation: | +2 / -3.5 dpt |
Twilight factor (DIN 58388): | 10.4 - 24.5 |
Impact correction per click: | .1 MRAD |
Adjustment range (E/W): | 2.5 / 1.2 m/100 m |
Parallax adjustment: | 25 m till ∞ |
Tube diameter: | 34 mm |
Length: | 376 mm |
Weight: | 836 g |
Focal plane: | 1 |
Illuminated: | Yes |
