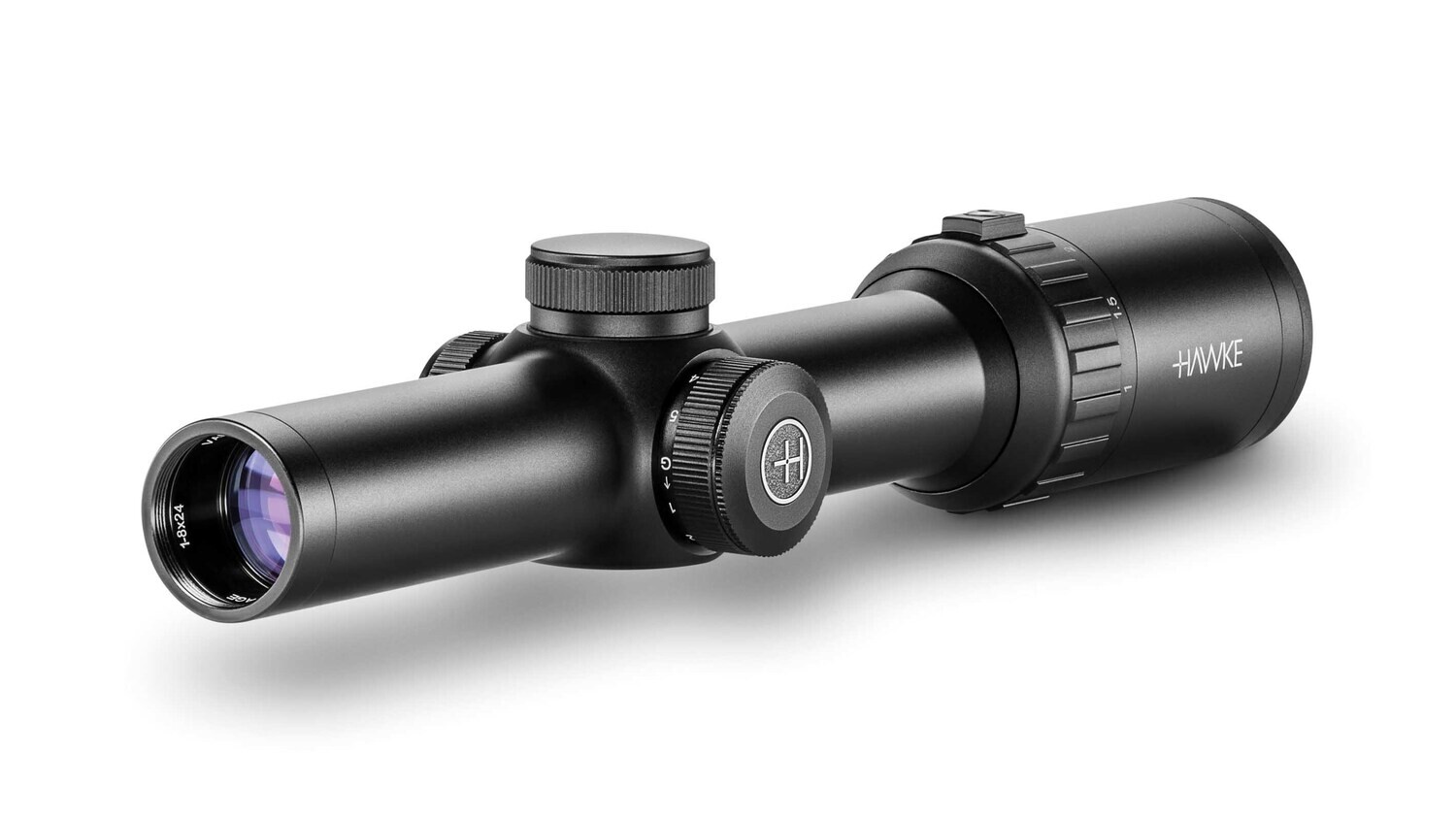

DESCRIPTION
Designed specifically to help fast target acquisition during Battue and driven hunt. Features a bright red centre dot and illuminated circle for instant aim.
All Vantage riflescopes feature our H2 optics in a variety of configurations.
IR models feature precision glass etched reticles with multi-stage illumination in both red and green.
FEATURES
SPECIFICATIONS
Objective Lens: | 24mm |
Reticle: | Circle Dot (8x) |
Parallax: | Fixed |
Magnification: | 1-8x |
Optical System: | System H2 |
Focal Plane: | SFP (Second Focal Plane) |
Scope Tube: | 30mm |
Illumination: | 5 Levels - Red/Green |
Field of View: | 120.4 - 15.1ft @100yds / 40.1 - 5m @100m |
Field of View: | 22.9 - 2.9° |
Eye Relief: | 3.8in / 97mm |
PX/Focus: | 100yds / 91m |
Exit Pupil: | 0.94 - 0.12″ / 24 - 3mm |
Turret Type: | Capped |
Turret Caps: | Yes |
Click Value: | 1/2 MOA |
Elevation Turret Clicks (max): | 210 MOA |
Windage Turret Clicks (max): | 210 MOA |
Ocular Type: | Fast Focus |
Power Selector: | Knurled Posi-Grip with Removable Zoom Lever |
Lens Coating: | Fully Multi-Coated - 11 Layers |
Length: | 10.5″ / 267mm |
Weight: | 16.5oz / 468g |
