DESCRIPTION
A high performance enclosed red dot sight built for supreme accuracy and durability. The Frontier Red Dot features a 2 MOA dot and 1/2 MOA adjustments for ultimate precision. High-grade aluminium construction, recessed brightness controls, guarded turrets, and IPX7 waterproofness for ruggedness and reliability in the most demanding environments and uses.
A 10-stage digital brightness control includes 2 night-vision compatible settings, while A.I.M. (Auto Illumination Mode) conserves battery power by putting the sight into standby mode when no movement is detected for 2 minutes. The sight automatically powers-on immediately when it senses movement. Paired with a high efficiency LED emitter, the Frontier operates at a daylight-bright setting for several years on a single battery.

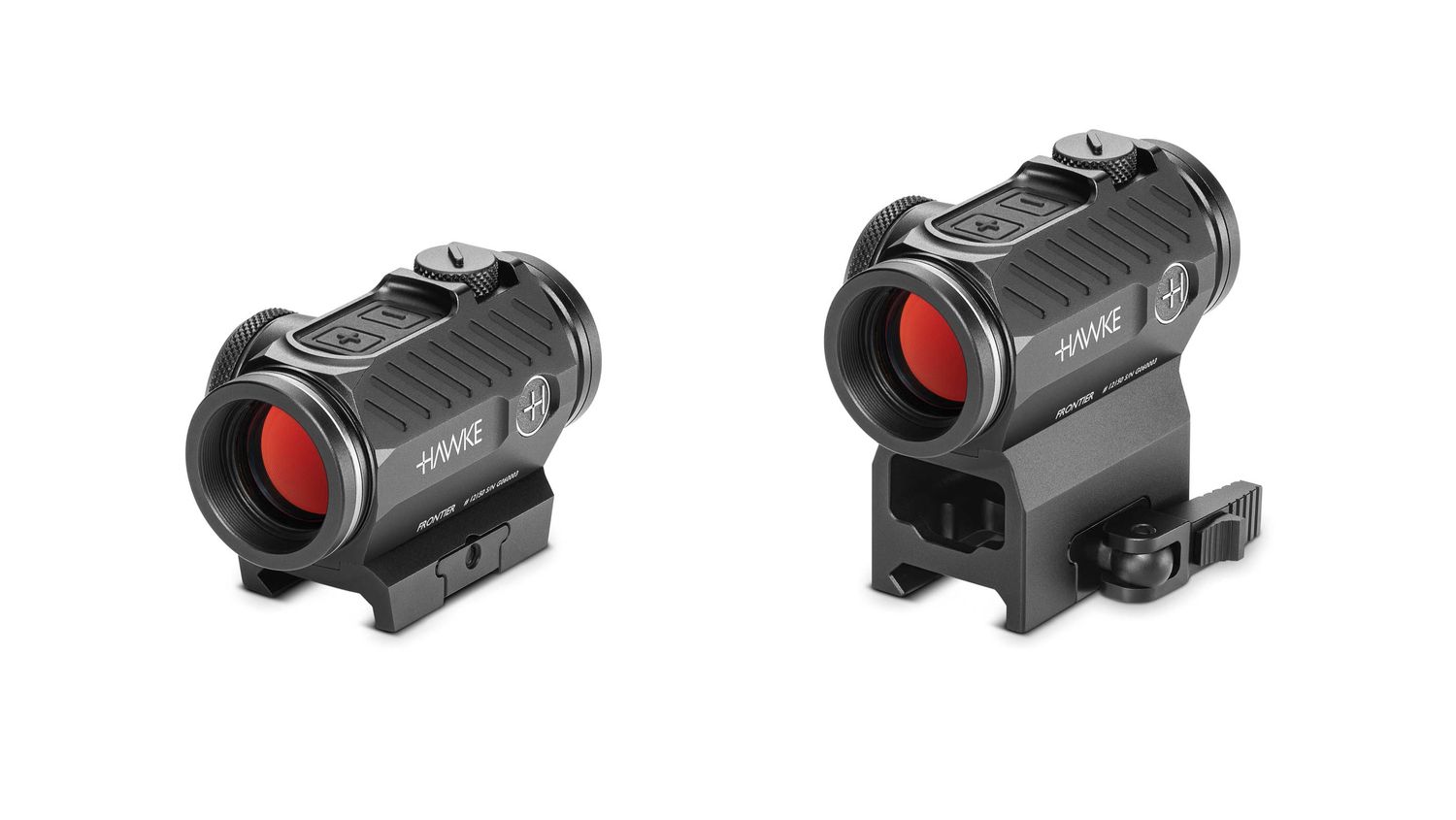

Designed for both high-performance hunting rifles and AR’s, Frontier includes a low-profile Weaver/Picatinny mount, lower-1/3 co-witness mount with quick-release, and a Micro T-2 footprint for limitless mounting options. Also supplied with a honeycomb sunshade and protective flip-up covers.
FEATURES
SPECIFICATIONS
Objective Lens: | 22mm |
Reticle: | 2 MOA Dot |
Magnification: | 1x |
Illumination: | 10 Stage Digital Brightness (8 Day / 2 Night) - Red |
PX/Focus (Error free from): | 10 yds / 9m - ∞ |
Click Value: | 1/2 MOA |
Lens Coating: | Multi-Coated - 25 Layers |
Mount: | Weaver Rail (Lower 1/3 Co-Witness with Quick Detach and Low Profile) / Micro T-2 Footprint |
Length: | 2.8" / 71mm |
Width: | 1.6" / 40mm |
Height: | 1.5" / 39mm |
Weight: | 4.8oz / 137g |
FITTED WITH LOW BASE | |
Length: | 2.8" / 71mm |
Width: | 1.6" / 40mm |
Height: | 1.9" / 49mm |
Rail to Center of Sight Height: | 0.8" / 21.5mm |
Weight: | 3.9oz / 110g |
FITTED WITH HIGH BASE | |
Length: | 2.8" / 71mm |
Width: | 1.7" / 43mm |
Height: | 2.7" / 68mm |
Rail to Center of Sight Height: | 1.59" / 40.4mm |
Weight: | 6.2oz / 175g |
