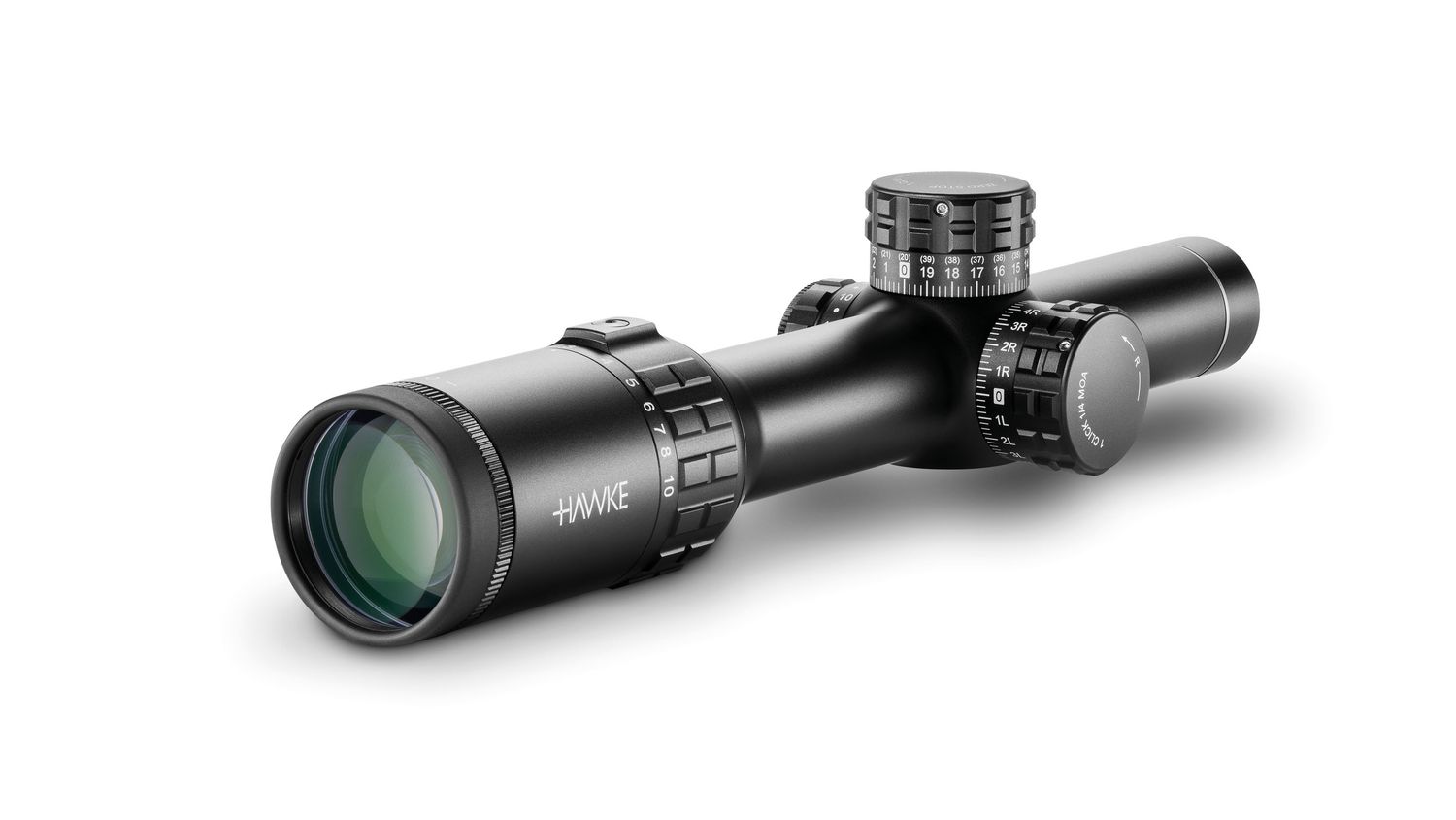

DESCRIPTION
All models feature Hawke’s new H7 optics with high zoom ratio, supreme clarity and light transmission.
Supreme accuracy for rifle shooting, driven and hunting applications.
FEATURES
MOA FD (10x) RETICLE
Accurate MOA spacing on 10x magnification. The bright fiber optic center dot gives a sharp aim point for quick reference and target acquisition. The thick outer posts make visibility easy when hunting in low-light conditions, while a fine upper post doesn't obstruct your view of the target.
When on 10x magnification, the gap between two marks is equal to 2 MOA of spacing.
SPECIFICATIONS
Objective Lens: | 24mm |
Reticle: | MOA FD (10x) |
Parallax: | Fixed |
Magnification: | 1-10x |
Optical System: | System H7 |
Focal Plane: | SFP (Second Focal Plane) |
Scope Tube: | 30mm |
Illumination: | 11 Levels - Red |
Field of View: | 38.8 - 3.9m @100m ( 116.3 - 11.6ft @100yds ) |
Field of View (°): | 21.9 - 2.2 |
Eye Relief: | 102mm ( 4" ) |
PX/Focus: | 91m ( 100yds ) |
Exit Pupil: | 24 - 2.4mm ( 0.94 - 0.09″ ) |
Turret Type: | Zero Lock 'n' Stop |
Click Value: | 1⁄ 4 MOA |
Elevation Turret Clicks (max): | 135 MOA |
Windage Turret Clicks (max): | 135 MOA |
Ocular Type: | Locking Fast Focus |
Power Selector: | Knurled Posi-Grip with Removable Zoom Lever |
Lens Coating: | Fully Multi-Coated - 21 Layers |
Length: | 283mm ( 11.1" ) |
Weight: | 540g ( 19oz ) |
